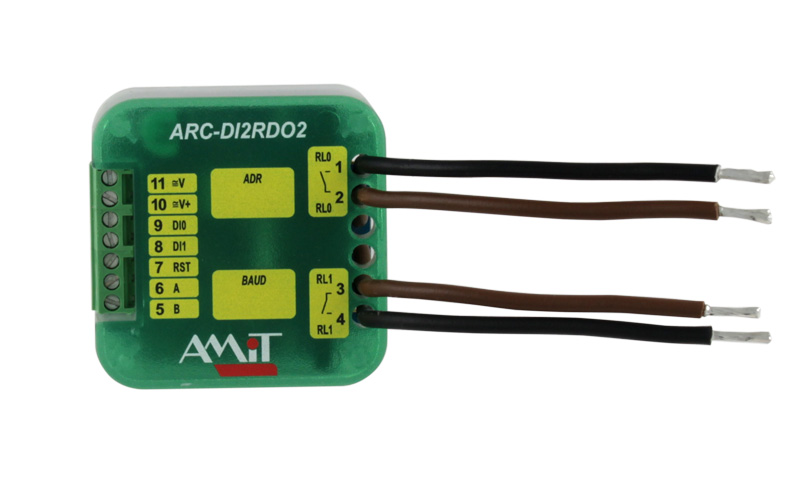

ARC-DI2RDO2

ARC-DI2RDO2

€106,52 excl. VAT

Flush mounted module, 2DI, 2RDO, RS485

On backorders

Add to list
SKU: ARC-DI2RDO2
Category:

Display of prices only for contractual partners.

  • suitable for controlling lights and blinds
  • 2× relay outputs
  • 2× digital inputs
  • RS485 interface with MODBUS RTU protocol
  • option of local control without a supervisory system
  • option of control from a supervisory system
  • combined control: locally and via MODBUS RTU
  • installation in a KU68
  • 24 V AC/DC power supply





Outputs 2
Type Switching relay
Nominal voltage / current 250 V AC / 4 A (resistive load)
Inputs 2
Type Dry Contact, 24 V AC/DC
Communication RS485 (GI 1 kV)
Cover protection rate IP20
Mounting Into a box under plaster
Power supply 24 V AC/DC ±20 %
Dimensions (w × h × d) (49 × 49 × 21) mm



Document File
ARC-DI2RDO2 Data sheet arc-di2rdo2_d_en_100.pdf
ePLAN macro arc-di2rdo2_se_en_100.zip
Drawing symbol arc-di2rdo2_s_en_100.zip
